Ango Strut Folding Camera

C. P. Goerz

Name: Ango
Manufacturer: C. P. Goerz
Country of Origin: Germany
Construction: Strut folding camera with focal plane shutter
Production Period:
Thumbnail of Goerz Ango Camera Click on the thumbnail on the left to open a large picture in this window.
(Use the Back button to return).
Other detailed photos are provided further down this page.

The Goerz Ango is a strut-type folding camera, with focal plane shutter. It has a leather covered wooden body. The camera has stout leather pleated bellows.

Plate / Film Size: 9 x 12cm plates
Lens: Goerz Dagor f6.8 Serial 490683
Shutter: Ango focal plane shutter
Movements: Rising & cross front
Dimensions (w x h x l): 18 x 15 x 17 cms (open)
Date of this Example: c1908
Serial Number: 42306 stamped into inner wooden frame of back, revealed when viewing hood removed. The number 42 is shown alongside, likely to be a batch number as the same number is also stamped into the reverse of the viewing hood frame.
Availability:
  • Common [ ]
  • Uncommon [x]
  • Hard to Find [ ]
  • Scarce [ ]
Inventory Number: 622

<Photographs to be added>

Description

This first example of the the Goerz Ango strut camera is fitted with a Dagor lens, mounted in a fixing with a Radial focus. The lens cap is still in place, although attachment string has broken. The lens is mounted on a narrow metal plate that can move vertically (rising front), and that in turn is fixed to a wooden panel that can move horizontally (cross front).

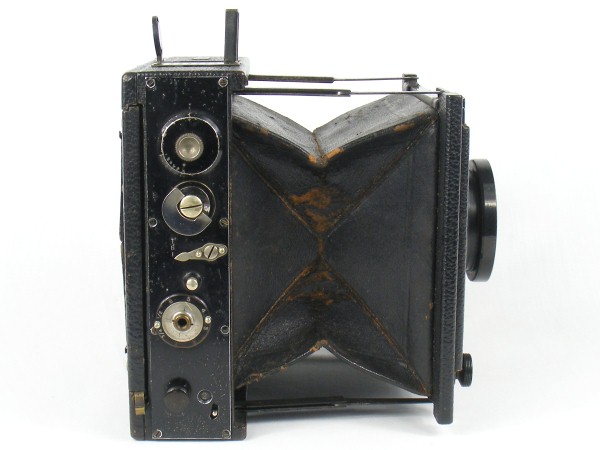

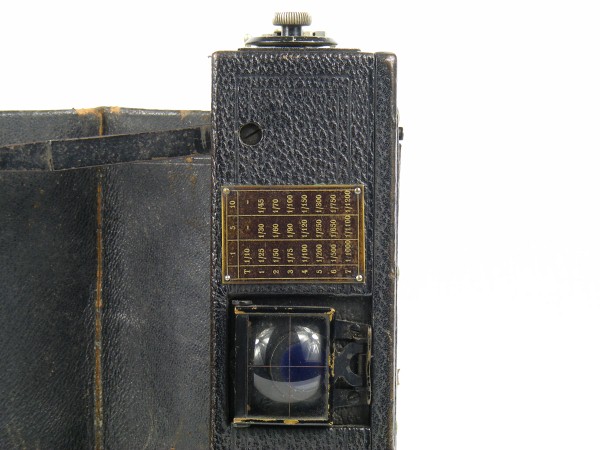

The relatively complex controls for the focal plane shutter are sited on the right hand side of the camera (viewed from the back). The left hand side has a sprung handle. The top face has a Newton finder, with cross hairs marked on the large front lens and a round tinted lens on the rear site. This is the later pattern finder introduced in 1906. Also on the top face is a chart that shows the shutter settings.

The camera is equipped with a ground glass screen, with a fold-out viewing hood.

~ # ~ # ~

Plate / Film Size: 9 x 12cm plates

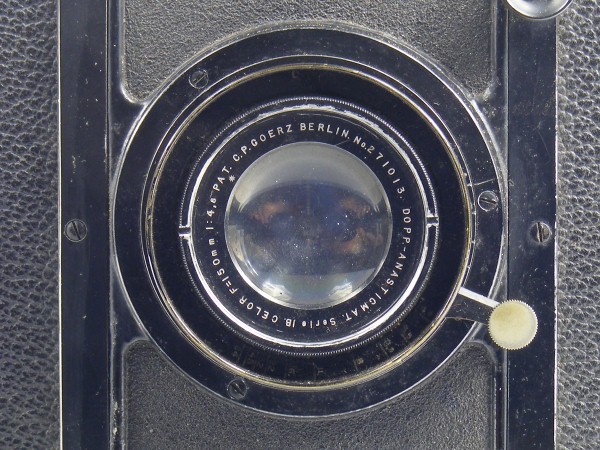

Lens: Goerz Anastigmat Celor f4.8 Serial 271013
Shutter: Ango focal plane shutter
Movements: Rising & cross front
Dimensions (w x h x l): 18 x 15 x 17 cms (open)
Date of this Example: c1908
Serial Number: 32735 stamped into inner wooden frame of back, revealed when viewing hood removed. Also shows batch number of 94 alongside. This number is also stamped into reverse of viewing hood frame.
Availability:
  • Common [ ]
  • Uncommon [x]
  • Hard to Find [ ]
  • Scarce [ ]
Inventory Number: 644



ClicPic Photos copyright 2015 David Purcell. Do not use without permission.
Click small picture to enlarge.   ClicPic Gallery Software.

Description

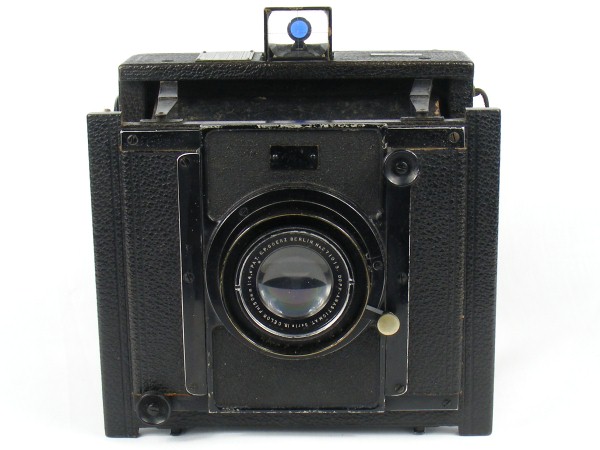

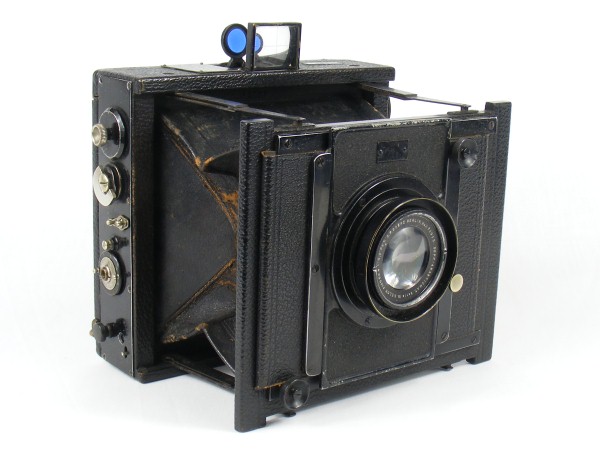

This second example of the Goerz Ango strut camera is very similar to the first example. The pleated bellows in fair condition, with no obvious splits or holes but showing surface wear on edges of pleats. The focal plane shutter is operational, having been restored for use by the previous owner, who replaced the focal plane shutter blind. The original is still in the case.

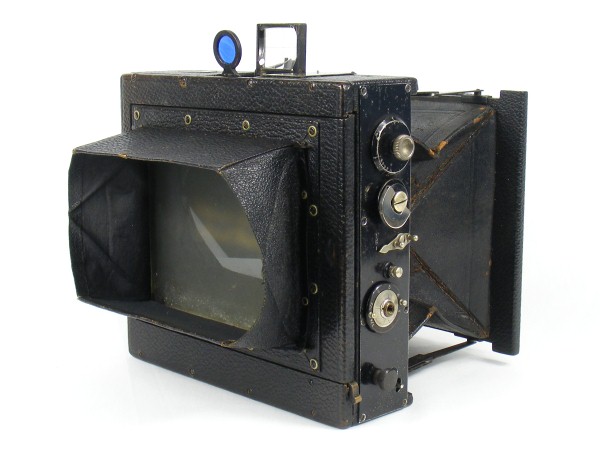

The ground glass screen is intact with fold out viewing hood. A Newton finder is also fitted (cross hairs to large front lens and round tinted lens on the rear site). This is the later pattern of finder that was introduced in 1906.

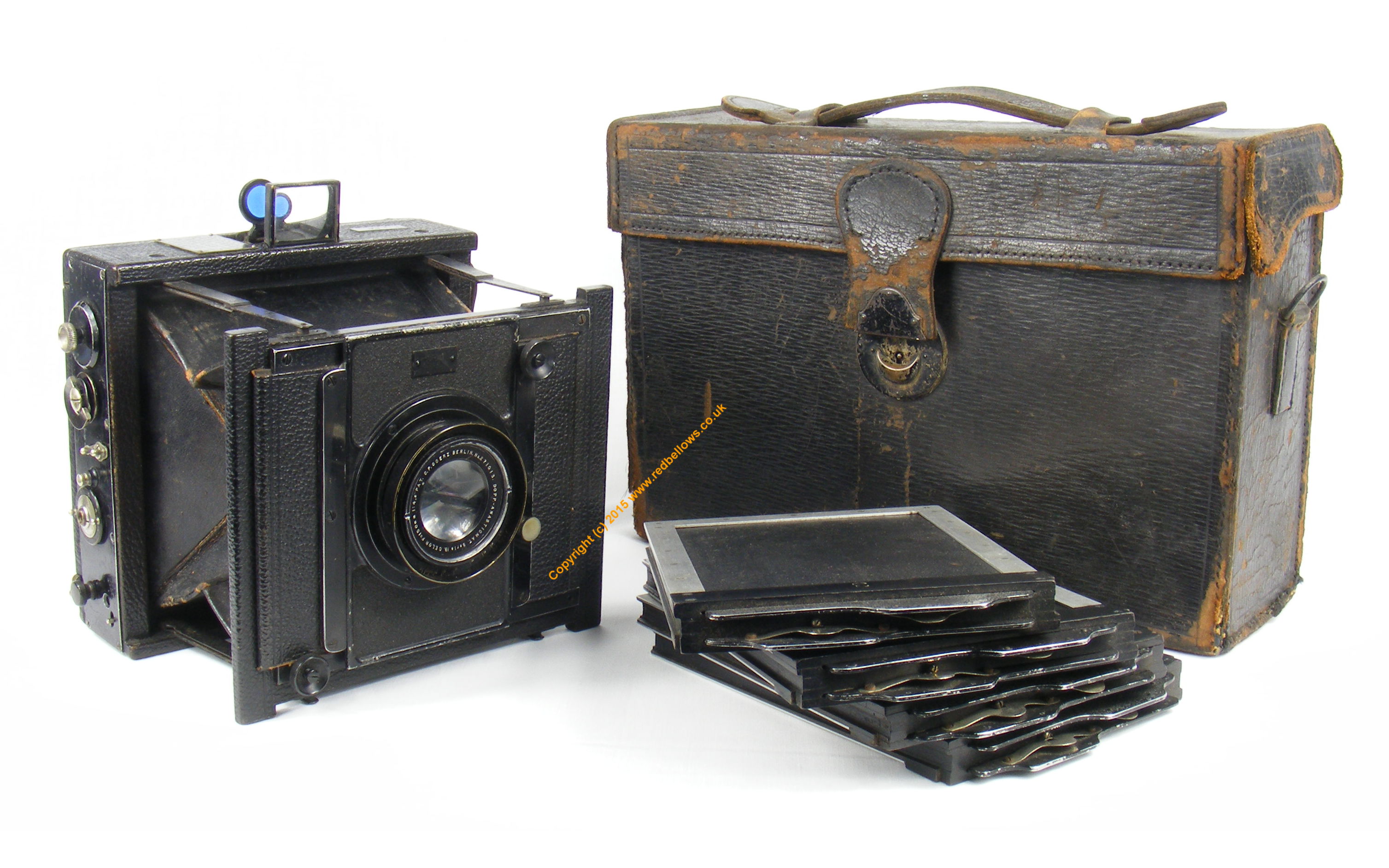

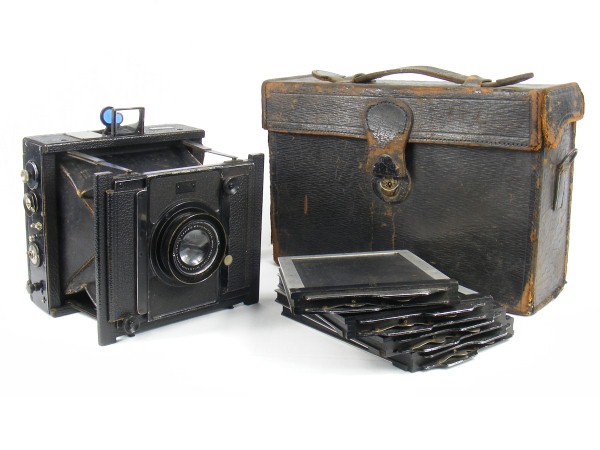

The camera came with its original leather case, which is velvet lined, and is complete with four black aluminium faced DDS.

Notes

The date of both examples is based upon data given in McKeown [1].
