Glunz-Camera Mod 3

G. Glunz & Sohn Kamerawerk

Name: Glunz-Camera Mod 3
Manufacturer: G. Glunz & Sohn Kamerawerk
Country of Origin: Germany (Hanover)

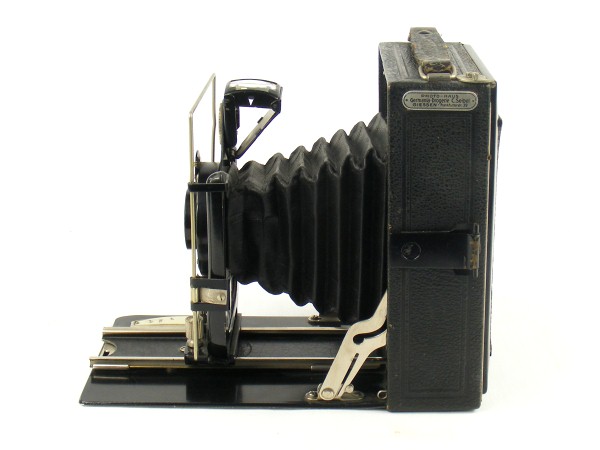

Construction: Folding plate camera of standard construction with aluminium body and imitation black leather covering.  Single extension black bellows.
Production Period: 1930 - ?



Model / Variant: Model 3G
Plate / Film Size: 9 x 12 cm plate
Lens: Glunz Anastigmat f6.3

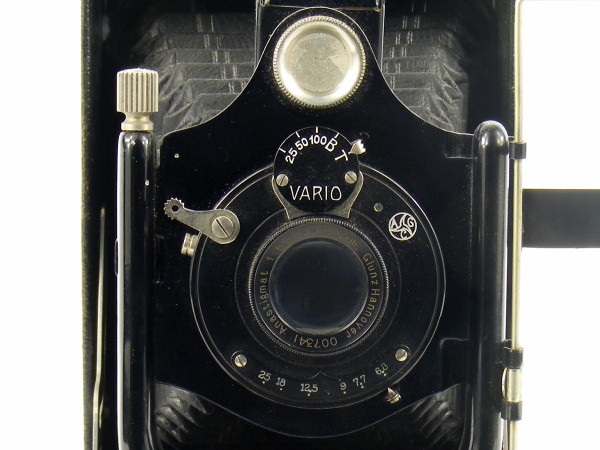

Shutter: Vario (1/25, 1/50, 1/100, B & T)
Movements: Vertical (micrometer) & horizontal shift
Dimensions (w x h x l): 11 x 16 x 5 (closed)
Date of this Example: c1930
Serial Number: None
Availability:
  • Common [ ]
  • Uncommon [x]
  • Hard to Find [ ]
  • Scarce [ ]
Inventory Number: 441

Description

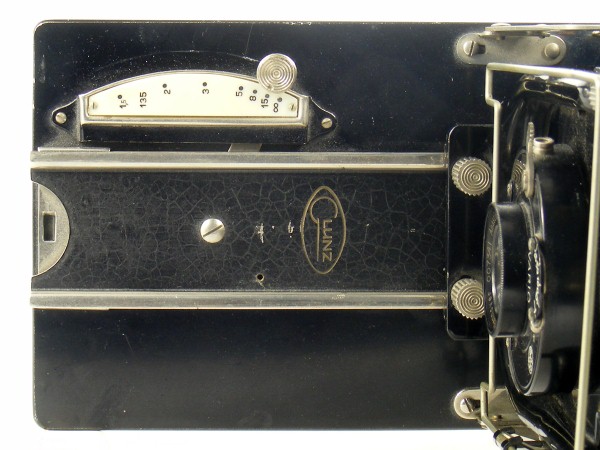

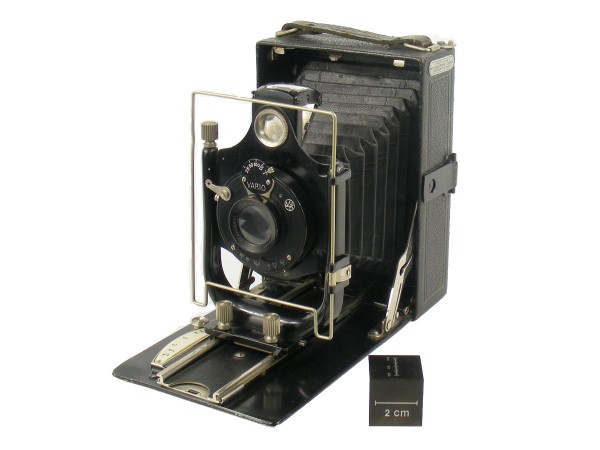

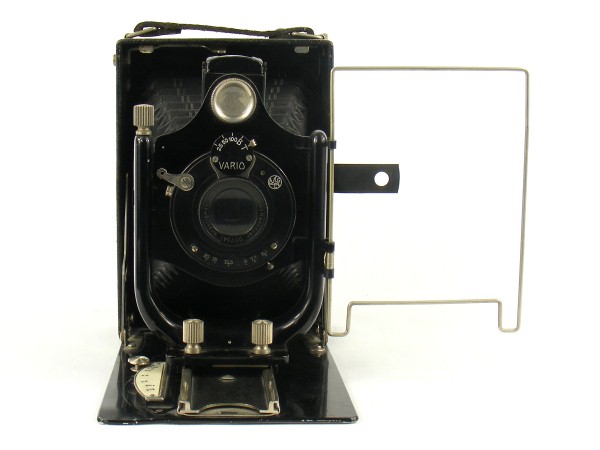

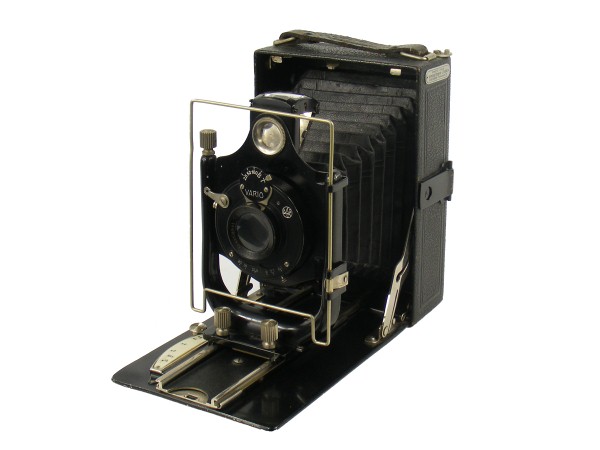

The Glunz Mod 3 camera is a basic 9 x 12cm plate camera with radial lever focus and micrometer screw setting for vertical adjustment. Finder in centre of lens standard. Wire frame finder fitted as well.

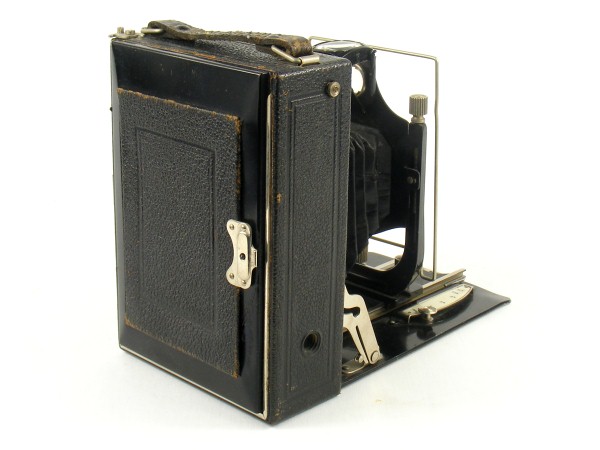

Camera has a metal body, covered in black leatherette material. This model has a U-shaped metal lens standard, Thr camera is quite typical of the mass produced plate cameras that were available at a relatively modest price in this period.



ClicPic Photos copyright 2014 David Purcell. Do not use without permission.
Click small picture to enlarge.   ClicPic Gallery Software.

Notes

This model, as with many other Glunz cameras, was made over a long period (at least 1913 to 1930 according to McKeown), but went through several transitions in design over that period. The example is a late form as it has an aluminium (as opposed to wood) body and a frame finder, which was introduced in 1930.

There are many different models available although their basic form is similar. Rollfilm cameras are also to be found by this maker.
